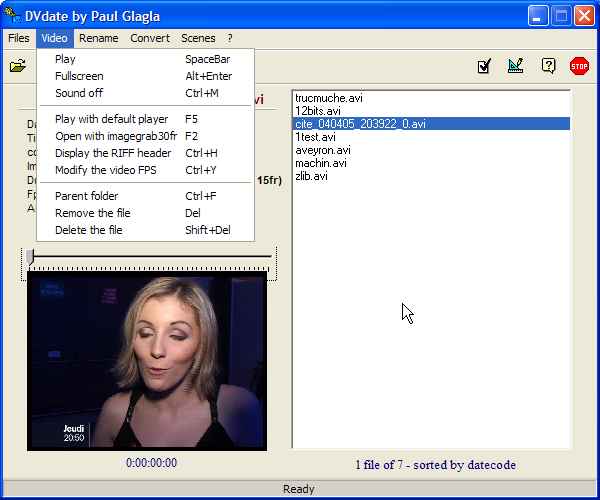

The menu Video of DVdate
Help pages about DVdate:
This page is better viewed in 1024x768.
Last update on
SMonday, December 11, 2006
click on a menu command to go to the relevant paragraph
Most commands of the menu Video apply only to the last selected file and not to all selected files, unlike the commands of the menus Rename, Convert or Scenes. In this menu, only the commands Remove the file and Delete the file are applied to all files selected in the playlist. Remember also that the available commands may vary with the selected file. Some commands are only available with DV files, or even DV files of type 2, others with files having datecode, etc...
Play
plays the selected
video.
You may also hit the Space
bar
of the keyboard. While the video is playing, three
items are continuously updated: the datecode and
the timecode
on the information
panel - if available in the video - and
below the video, the timestamp, ie the position
of the current frame in the video in hours:
minutes: seconds: frames.
Pause
puts the video in the pause mode. The Space
bar also toggles
between Play and Pause. In pause mode, which
is the default mode when a video is selected,
it's easy to seek through the video with
the trackbar above the video or by
typing CTRL+arrow
at the keyboard. With the arrow keys Right
and Left you may step forward or
backward for one frame, with the arrow keys
Up and Down you may step forward
or backward for one second, with the arrow
keys Page Up and Page Down you
may step forward or backward for one minute,
and with Home or End you
go back to Start or advance to the
End of the video.
Don't forget to hold the key CTRL pressed
at the same time than the arrow key.
If a scn file is available, you may
also browse from scene to scene with F8 and F9.
If it is not,
you may create one in the menu
Scenes.
Fullscreen
puts the video in Full screen mode.
Alt+Enter has
the same effect.
To come back from Full screen mode, type
again
ALT+Enter, or
right click with the mouse on the screen, and
find the command Quit
Fullscreen
in the popup menu. The key Esc
should also work.
Sound Off /Sound On
mutes the sound Off or On. You may launch
these commands not only while the file is
playing but also while it is paused, the
change will then only take effect when the
video is later played. CTRL+M
has the same effect.
Play with default player
or F5 launches
the video in the application associated
in Windows with AVI files. Generally
it's
either Windows Media Player, or RealPlayer
or a program like that.
Open with ImageGrab.exe
or a name like that is a command that appears
only if in the Settings
panel
(F10) and
under the tab preferences,
you have indicated a valid filename for ImageGrab. In
that case, this
command, or the function key F2 opens
the selected video in ImageGrab where
you may extract images in format
jpg or bmp from the video. If you don't
know my
freeware program ImageGrab, look
here.
Display the RIFF header
or CTRL+H. This function opens
a new window
displaying the RIFF header of the
selected
avi file. This function is like the program riffwalk.exe that Microsoft
used to include in earlier versions of the SDK Windows but
that it no longer distributes. The old riffwalk
was actually only a command-line program, very
painful to use. DVdate does almost
the same, but very comfortably.
It would be too long to explain here what is the RIFF header of an AVI. Look for instance here for an explanation. It is probably the most comprehensive way to look what's inside the AVI file, and to verify if it is not corrupted. It contains information about file indexes, about the AVI standard avi 1.0 or avi 2.0 odml, and even information about the garbage bytes that some applications insert into the AVI files, sometimes to align the RIFF chunk in order to read them more easily, but sometimes also as a spy data about the application used for capture or transformation etc... If you want to be safe from such spy data, use my freeware application CaptureFlux which writes nothing more than needed into the video.
When the RIFF header is displayed, a button Save allows to save this header as a text file (with extension log) to your hard disk, and a button Close closes the Header window and returns to the main DVdate window.
Modify the video FPS
or CTRL+Y fixes
the video framerate (number of frames per
second) in the header of the avi file. This
command is not enabled for avi DV of type 1.
It is specially useful for some MJPG avi
files with a wrong framerate given when
captured by an analog capture board. This
command opens a new window where you may
set a new framerate. Two values are proposed 25 or 29,97
frames per seconds, but you may also
set a personalized framerate. Click OK to
apply the new value
or Cancel to
quit the window without modification.
When you change the framerate, the audio stream is not modified. Thus the audio duration may now be different from the video duration as indicated by the information panel of DVdate (two different values for Duration, in parentheses is the audio duration) and the AVI may be out of sync. But if this was the case before fixing, a change of framerate may sometimes repair the issue..
Modify the codec: When
you click on this command, DVdate
lets you fix the 4 characters
making the cod codec of the
AVI file, what is called the FourCC. Do
it only if you know what you do, otherwise your file could
be un-usable. Two purposes are to consider: first of all,
change XVID into DivX could sometimes help to read your
video on some standalone DVD players, who accept the first
FourCC and not the second. Secondly, you may meet different
kinds of DV codecs,of course the standard
dvsd from Microsoft, but also a variant dsvd or
some proprietary codecs
such as CDVC from Canopus. By
modifying the codec, you might operate a video with
one codec in an application accepting only another one.
Parent folder
or CTRL+F displays
the folder containing the selected video
file.
You may then have a direct access to this
file in
Windows to copy it, delete it, rename

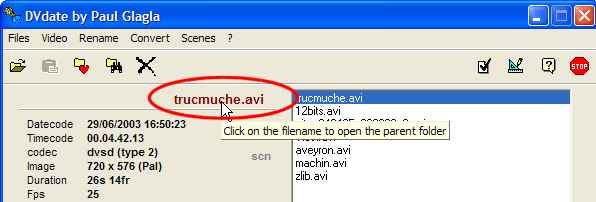

it and son on... You may also open
the parent folder by clicking on the name
of the selected video above the information
panel.
Remove the file
or Del removes
all selected files from the playlist.
The files on the hard drive are not modified,
only their names are removed from the playlist
Delete the file
or Shift+Del sends
all selected files to the Recycle Bin
or deletes them if they are too big for
the Recycle Bin.
A confirmation is indeed requested because
this command may delete them really from
the hard disk.
